Quantification of Extracellular Vesicles

Did you know that extracellular vesicles (EVs) hold immense potential as both disease biomarkers (e.g., PD-L1) and therapeutic agents? To effectively study EVs, we need a highly precise and sensitive method to detect their presence and quantify their absolute amounts. It turns out droplet digital PCR (ddPCR) can be a powerful tool for the detection and quantification of proteins expressed on EVs!

Ko et al., 2020 developed a modified ddPCR method, known as immuno-ddPCR (iddPCR), for the accurate quantification of target proteins expressed on EVs. Check out the summary of the entire workflow below:

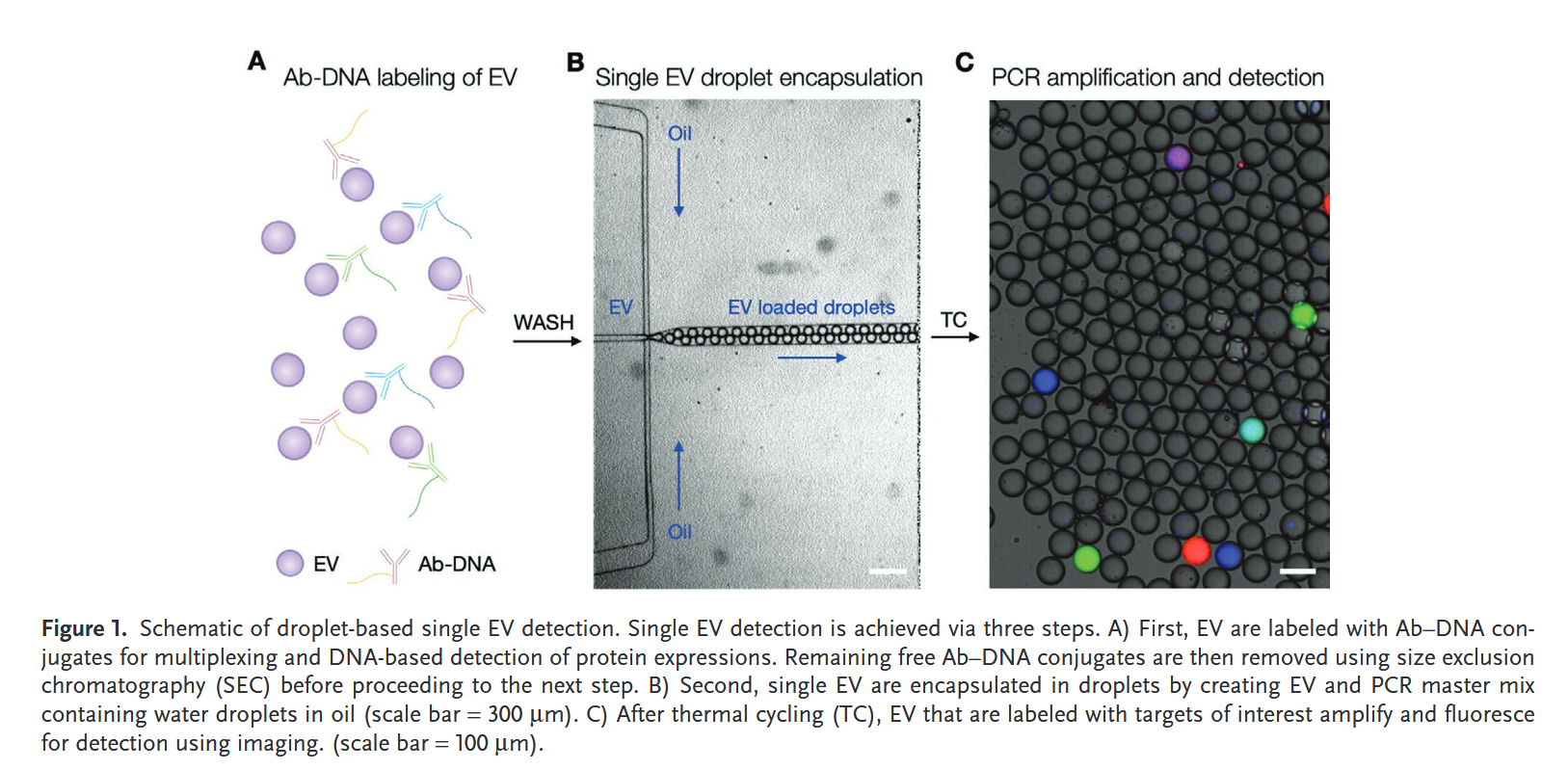

Quantification%20of%20Extracellular%20Vesicles/image.png
Source: Ko et al., 2020, Figure 1

The entire workflow consists of:

  1. Antibody Labeling with DNA Barcodes

Barcoded monoclonal antibodies bind specifically to target proteins on EVs. After incubation, size exclusion chromatography (SEC) removes unbound antibody–DNA complexes.

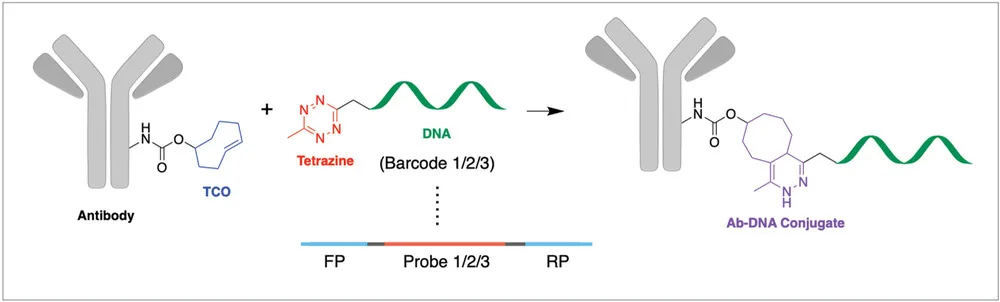

Quantification%20of%20Extracellular%20Vesicles/6c2ccbd4-860f-4bd1-b2b1-280ab2ab0e0f.png
Source: Ko et al., 2020, Figure 2 (adapted)

  1. Encapsulation in Droplets

Using a two-channel droplet microfluidic system, antibody-bound EVs are encapsulated separately from the PCR master mix to prevent EV lysis. The ddPCR supermix for Probes is used as the PCR mix, while Droplet Generation Oil for Probes is used to generate the droplets.

  1. In Situ Amplification of DNA Barcodes

Droplets undergo thermal cycling (35 cycles) according to Bio-Rad’s ddPCR protocol, allowing amplification of the DNA barcodes. These droplets are stable at room temperature until ready for signal reading.

  1. Fluorescent Detection and Quantification

A high-speed imaging camera detects fluorescent droplets. The system used in the study achieved a limit of detection (LOD) of 38 EVs/µL and a dynamic range spanning three orders of magnitude.

Multiplex Protein Detection on EVs

The iddPCR method supports multiplex analysis by incorporating multiple antibody barcodes and probes. This enables simultaneous detection of various proteins on EVs, as shown below:

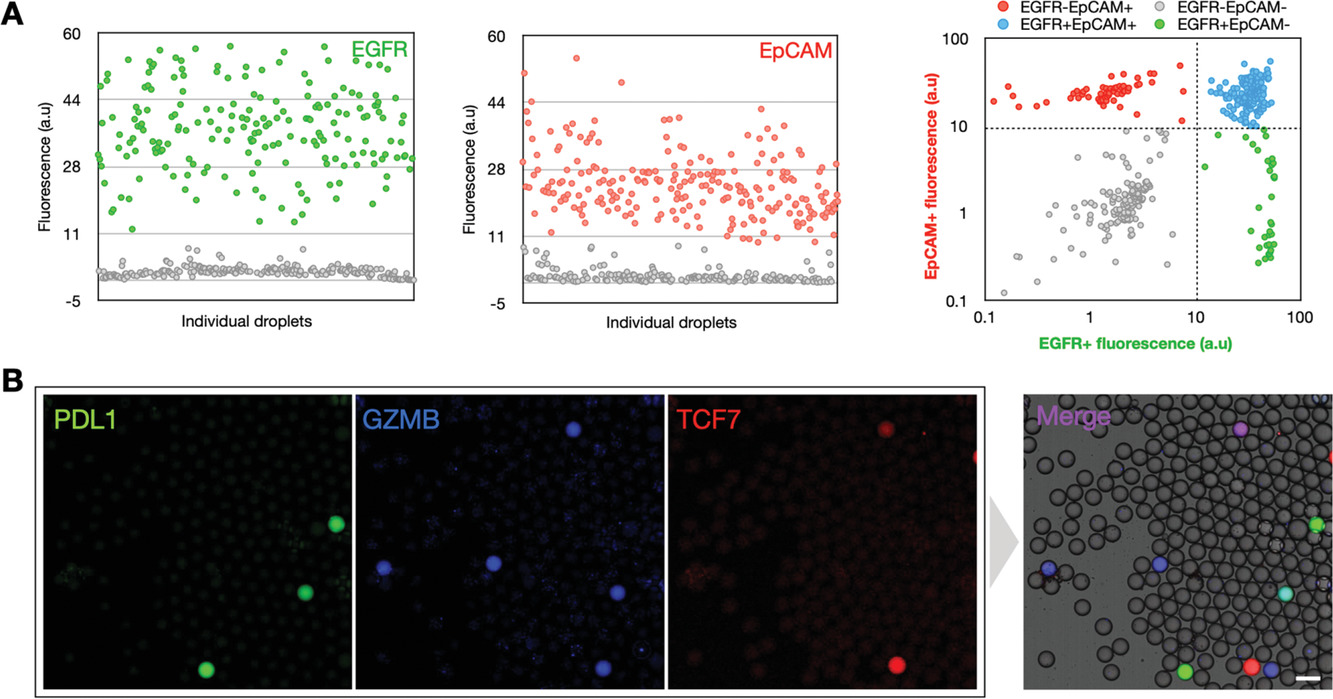

Quantification%20of%20Extracellular%20Vesicles/adbi201900307-fig-0005-m.jpg
Source: Ko et al., 2020, Figure 5

The iddPCR technique is a highly sensitive and precise method for quantifying proteins on EVs. It supports both singleplex and multiplex analyses, paving the way for advanced studies in biomarker discovery and therapeutic research.
