Scorpion Probes

The scorpion probe is a uniquely designed molecule that combines both the primer and probe into a single structure. Structurally, it resembles a molecular beacon due to its internal loop (or hairpin) configuration, where a fluorophore and quencher are positioned adjacent to each other at opposite ends of the sequence. The unstructured portion of the scorpion probe contains the primer sequence, which initiates the PCR process.

A typical qPCR reaction using scorpion probes involves two key steps:

  1. Extension Step: The primer portion of the scorpion probe binds to the target sequence, initiating the extension of the nascent amplicon.
  2. Annealing Step: In the next cycle, the loop region of the probe denatures and hybridizes to the newly synthesized amplicon. This hybridization separates the fluorophore from the quencher, resulting in the generation of a fluorescence signal.

Scorpion probes are known for producing highly intense fluorescence signals due to their intramolecular detection mechanism, which is generally more efficient than the intermolecular interactions utilized by other probes, such as TaqMan probes or molecular beacons. However, designing scorpion probes can be challenging due to their complex and less flexible structure.

The first study describing the use of scorpion probes was published by Whitcombe et al., 1999

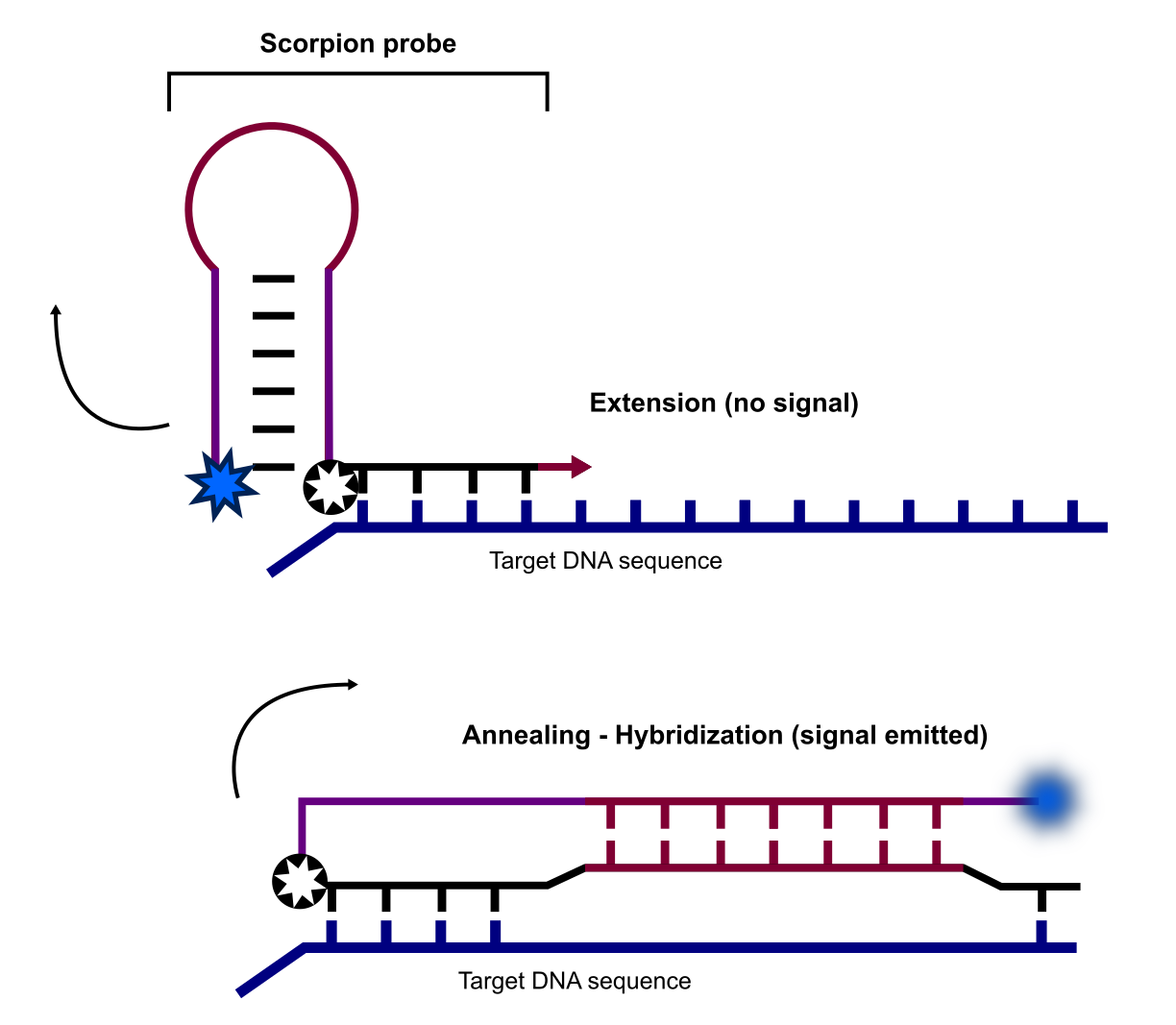

Scorpion pr.png An example of a scorpion probe cycling between inactive (during extension) and active (when hybridized to the nascent strand) states and ultimately being used to detect the target sequence
